Walk In Chamber

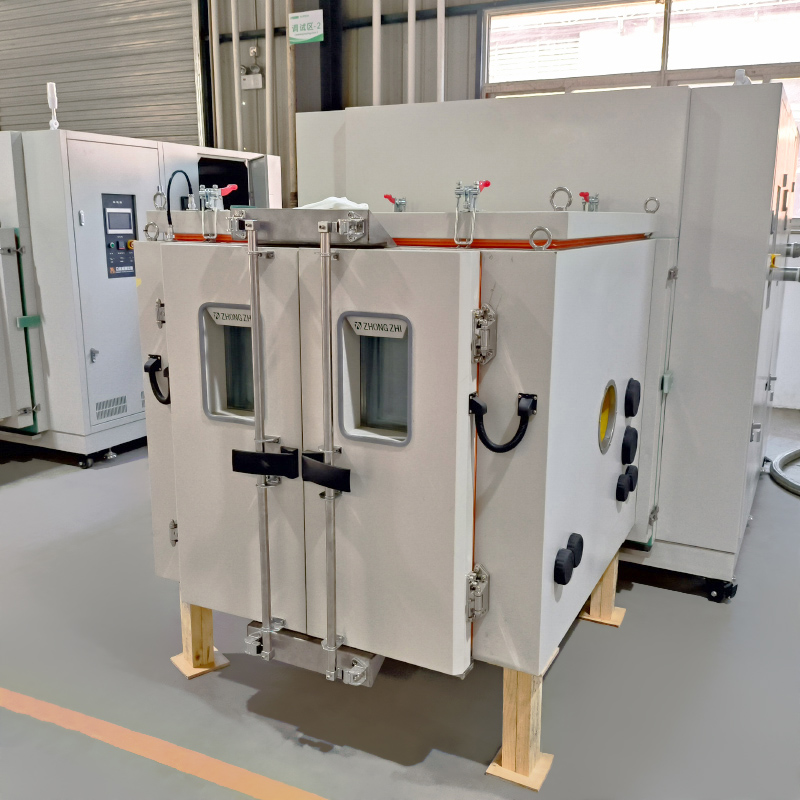

Large Non-standard Customized Environmental Test Chamber

Large Non-standard Customized Environmental Test Chamber

Zhongzhi Testing Instruments' environmental test chamber is a test equipment that simulates environmental conditions such as temperature, humidity, and rapid changes in temperature and humidity. Under the operating conditions of the chamber, it tests the reliability of product performance under conditions of low temperature, high temperature, and changes in temperature and humidity, and provides data reference for product development and finalization.

product details

Product Specifications:

Model	Large non-standard customized environmental test chamber
Temperature range	-70℃～+100℃(150℃)(D:-40℃ G:-70℃)
Humidity range	20%～98%R.H.(10%-98%R.H/5%～98%R.H is a special selection condition)
Temperature and humidity analysis accuracy/uniformity	0.01℃；0.1%R.H./±1.0℃；±3.0%R.H.
Temperature and humidity control accuracy/fluctuation	±1.0℃；±2.0%R.H./±0.5℃；±2.0%R.H.
Heating/Cooling rate	About 3.0℃/minute; about 1.0℃/minute (a drop of 2℃ to 15℃ or more per minute is a special selection condition)

Product Description:

As a walk in chamber manufacturer, the testing chamber we produce is a kind of testing equipment that simulates environmental conditions such as temperature, humidity, and rapid temperature and humidity changes. Under the operating conditions of the chamber, the reliability of the product's performance under low temperature, high temperature, temperature and humidity changes, etc., is tested to provide data reference for product development and finalization.

Temperature Control Range:

Lmplement and Meet Standards and Test Methods

●GB2423.1-2008/IEC6008-2-1-2007 Low temperature test method

●GB/T2423.2-2008 High temperature test method

●GJB150.3A-2009 High temperature test method

●GJB150.4A-2009 Low temperature test method

●GB2423.22-2008 Temperature change rate test method

●GBT2424.5-2006 Temperature test chamber performance confirmation

●GB/T10589-2008 Low temperature test chamber technical conditions

●GB/T2423.3-2008 (IEC68-2-3) Constant humidity test method

●GJB150.9A-2009 Damp heat test method

●G/BT24234-2008/IEC6008-2-30:2005 Alternating damp heat method

●GB/T5170.18-2005 Temperature/humidity combination cycle test equipment calibration method

●GB/T10586-2006 Damp heat test chamber technical conditions

●GBT2424.6-2006 Temperature/humidity test chamber performance confirmation

●GBT2424.7-2006 (Loaded) temperature test chamber measurement

Contact Us

As a professional test chamber manufacturer, Guangdong Zhongzhi Testing Instruments Co., Ltd. offers custom products to meet your specific testing needs, including our Walk-In Battery High and Low Temperature Humidity and Heat Environment Chamber. For more information, please feel free to contact us.
